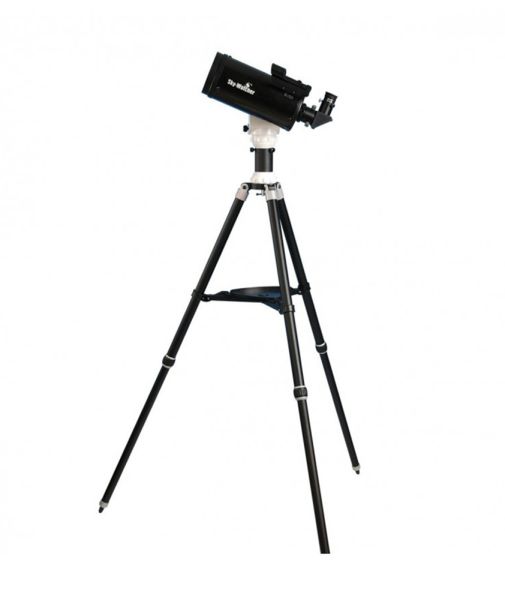

SkyWatcher Skymax 102 AZ-GTi Maksutov-Cassegrain telescope
SkyWatcher Skymax 102 AZ-GTi Maksutov-Cassegrain telescope. Aperture 102 mm, focal length 1300 mm (F/12.7), total weight 5.75 kg, 10 mm and 25 mm eyepieces, GoTo with more than 10000 objects, WiFi network.
SkyWatcher Skymax 102/1300 EQ2 Maksutov-Cassegrain telescope
The lightweight and highly portable Sky-Watcher SKYMAX-102 (AZ-GTi) has been designed to be controlled wirelessly with your Smartphone or Tablet, using the free SynScan App for iOS or Android.
The AZ-GTi mounting, with its built-in WiFi module, creates its very own Wi-Fi network, so the mount can be used anywhere, without any reliance on other WiFi or mobile networks. After entering your coordinates into the App and following a simple alignment procedure, you are ready to explore the universe using the Apps intuitive touchscreen menu.
The AZ-GTi and SynScan App provides full computerised GO-TO control, allowing the telescope to be automatically slewed to any one of the objects in the App’s extensive database of 10,000+ celestial objects.
Incorporates Sky-Watcher’s Freedom-Find patented Dual-Encoder Technology, which allows the telescope to be moved manually in either axis without the mount losing its positional information. This gives the user enormous freedom, convenience and flexibility during observational sessions.
The compact but powerful SKYMAX-102 telescope is ideal for the observation of double stars, and the surface detail of the moon & bright planets. Its high-resolution, long focal length optical system is multi-coated to maximise contrast and image sharpness.
|
Optics: |
Maksutov-Cassegrain, Gregory (spot) type |
|
Diameter of primary mirror: |
102 mm |
|
Telescope focal length: |
1300 mm (f/12.7) |
|
Eyepieces supplied (1.25"): |
10 mm & 25 mm |
|
Magnifications (with optics supplied): |
52x & 130x |
|
Highest practical power (Potential): |
204x |
|
Finder: |
Red dot finder |
|
Star diagonal: |
90° |
|
Controller: |
Free SynScan app for iOS and Android mobile device or Synscan hand controller (available separately) |
|
SynScan app database: |
Total 10,000+ objects. |
|
Deep sky objects: |
10759, including Messier, NGC, IC, Caldwell catalogues |
|
Named DSOs, named stars: |
305 |
|
Double stars: |
55 |
|
Solar system objects: |
7 planets, sun, moon. |
|
Objects when working with a 3rd party planetarium software: |
Unlimited |
|
SynScan app alignment method: |
Brightest Star Alignment, North-Level Alignment |
|
SynScan App's Other Features: |
TonightZs Best Sky Tour, Point and Go with a mobile device, identification of celestial objects, remote control over internet, user defined objects, Pointing Accuracy Enhancement (PAE) |
|
Pointing accuracy: |
Up to 10 arc-minute (RMS) |
|
Resolution: |
2073600 counts/rev., 0.625 arc-second |
|
Resolution of aux. R.A./Dec. axis encoders: |
1068 counts/rev., approx. 20 arc-minutes |
|
Encoder system: |
Freedom-Find Dual-Encoder Technology |
|
Tracking rates: |
Sidereal, lunar, solar, alignment-free solar tracking |
|
Slewing speeds: |
0.5X, 1.0x, 8.0x, 16x, 32x, 64x, 128x, 400x, 800x |
|
Tracking mode: |
Dual axis tracking |
|
Motor: |
DC servo motor, gear ratio 6480 |
|
Telescope connector: |
45 mm Sky-Watcher/Vixen type dovetail saddle |
|
Interface: |
SynScan hand control port, DSLR shutter release port (optional cables available separately), built-in Wi-Fi module |
|
Connectivity: |
ASCOM platform for Windows PC, Mobile planetarium App for iOS and Android (SkySafari Plus/Pro, more are coming). |
|
Network protocol: |
UDP, Port 11880 |
|
Tripod: |
Adjustable aluminium tripod with accessory tray |
|
Height of tripod/mount (excl. OTA): |
80.5 cm - 152 cm |
|
Total weight with tripod: |
5.75 kg |
|
Power requirement: |
8 AA size batteries (not supplied) or external power supply (DC 7.5~14 V, 0.75 A), tip positive. |
| Product Status | New |
|---|---|
| Package width | 43 cm |
| Package height | 25 cm |
| Package depth | 83 cm |
| No. of parcels | 1 |
